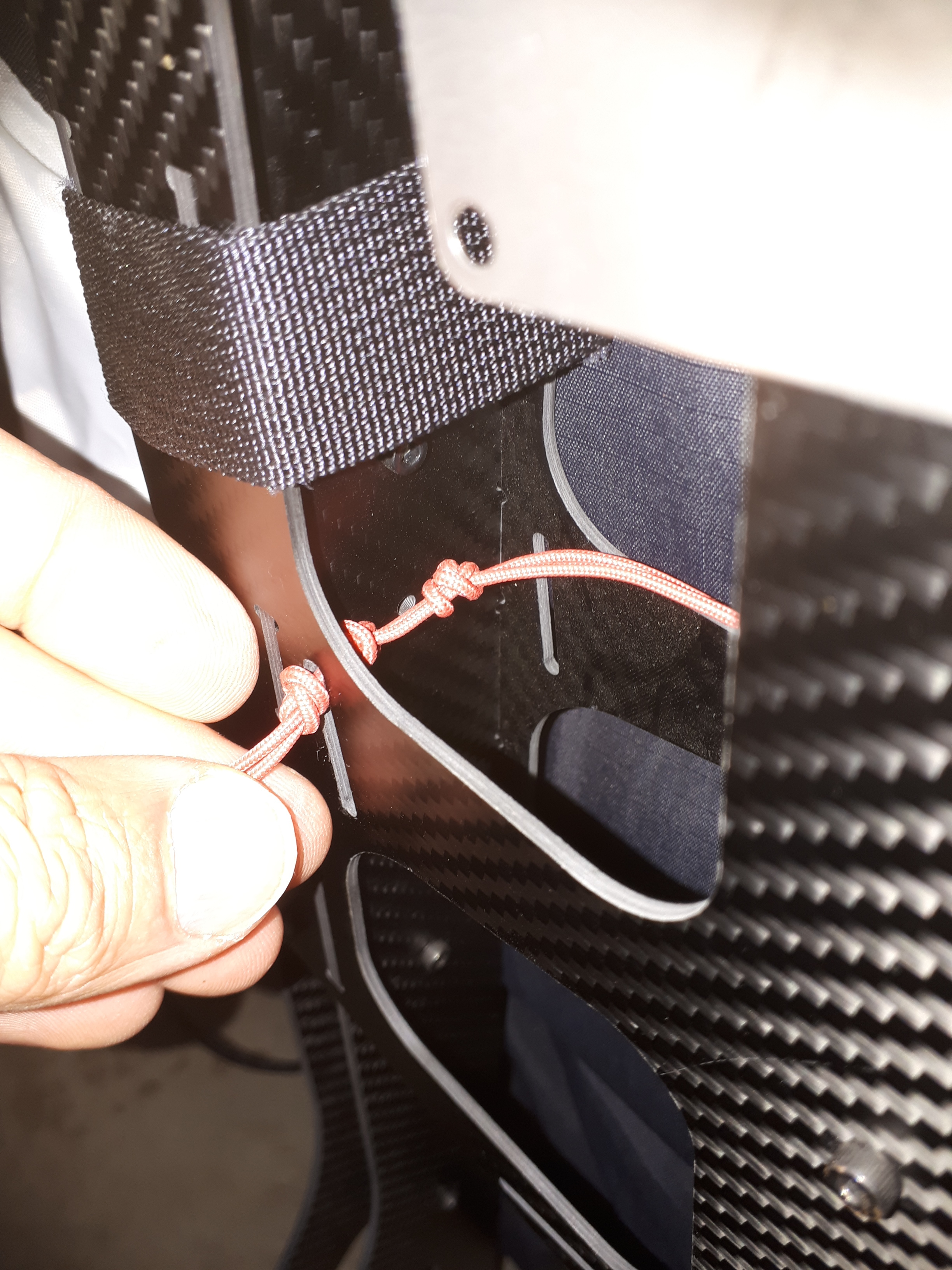

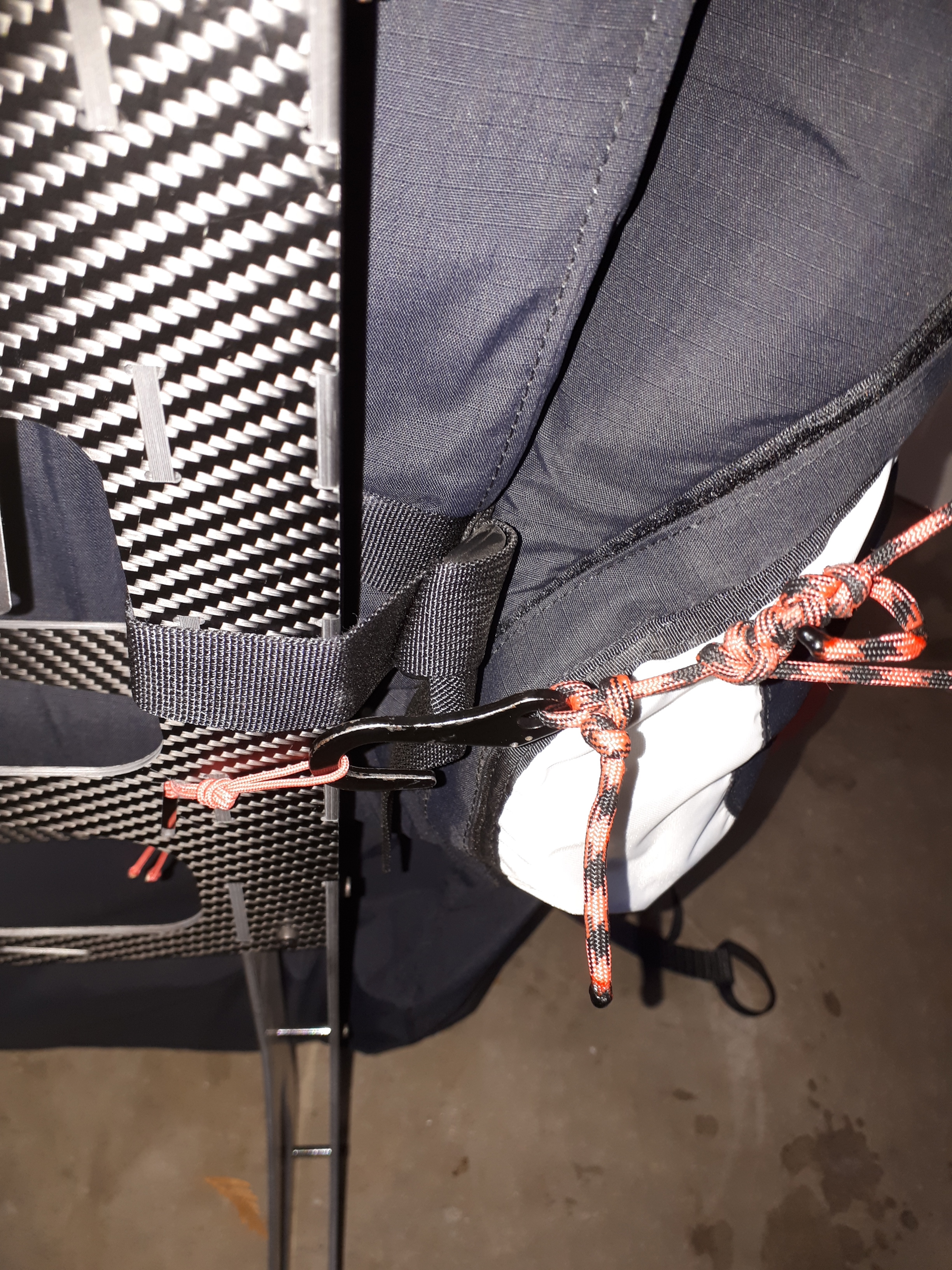

I knotted the cord as needed to get things pulling tight. The loops are made from knotted paracord coming through extra slots in the frame. I shaved the CF to round the edges where the cord rides on them.

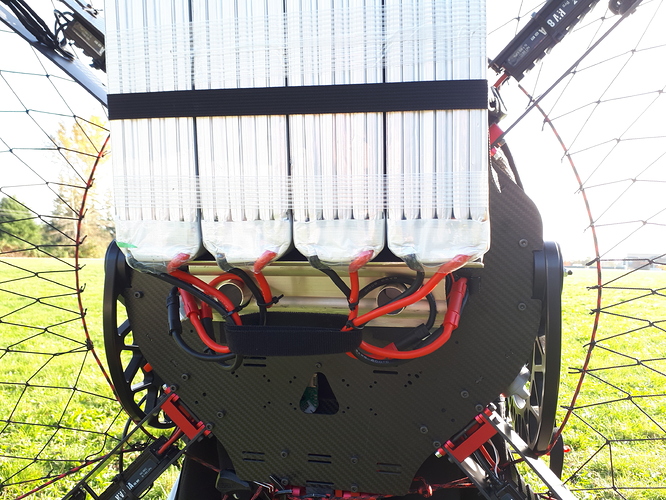

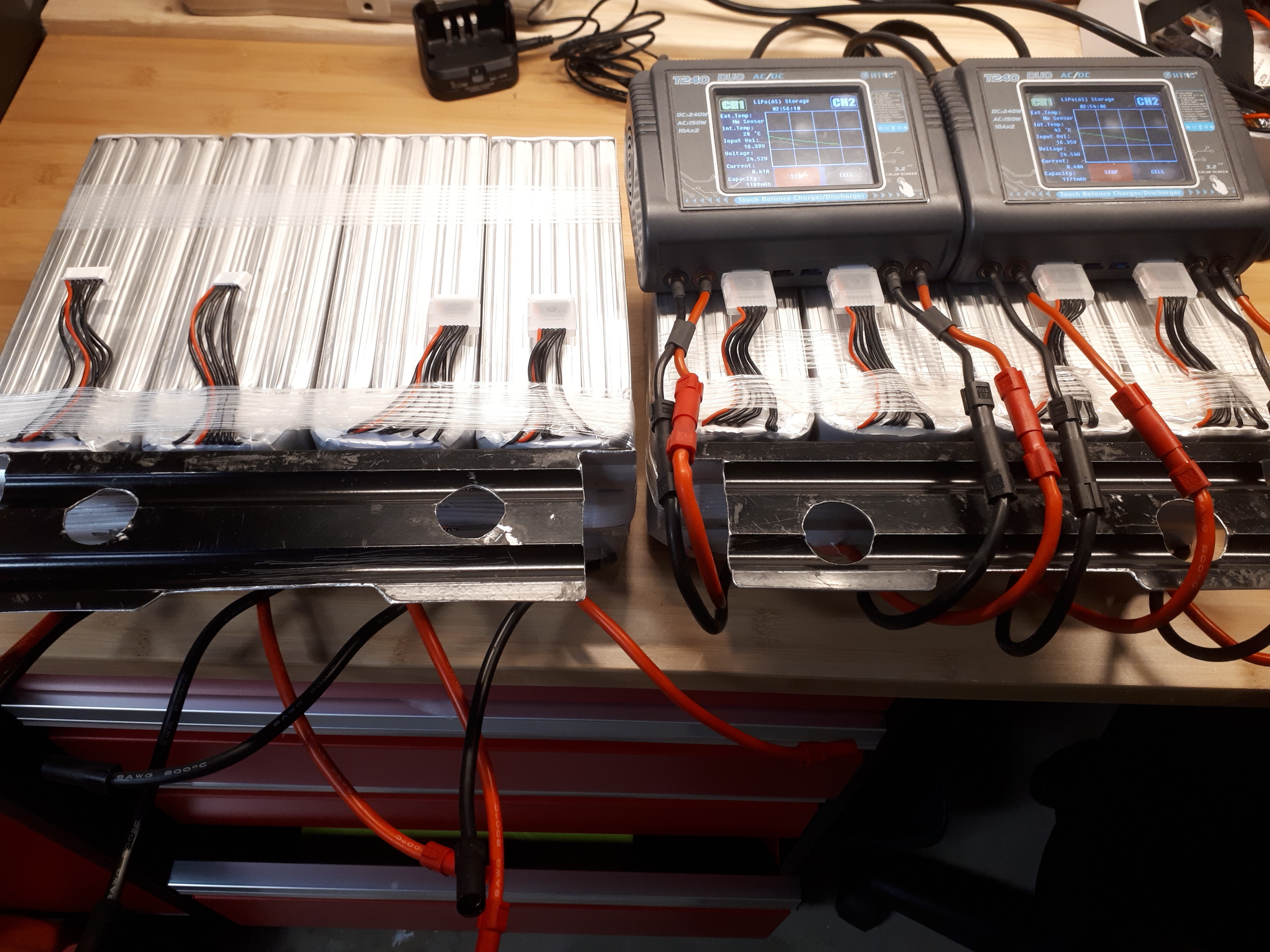

I decided to tape them into a single brick and to the aluminium shelf. I’ve used double faced tape between the packs and between the packs and the shelf. Then fibreglass reinforced tape to hold the assembly together.

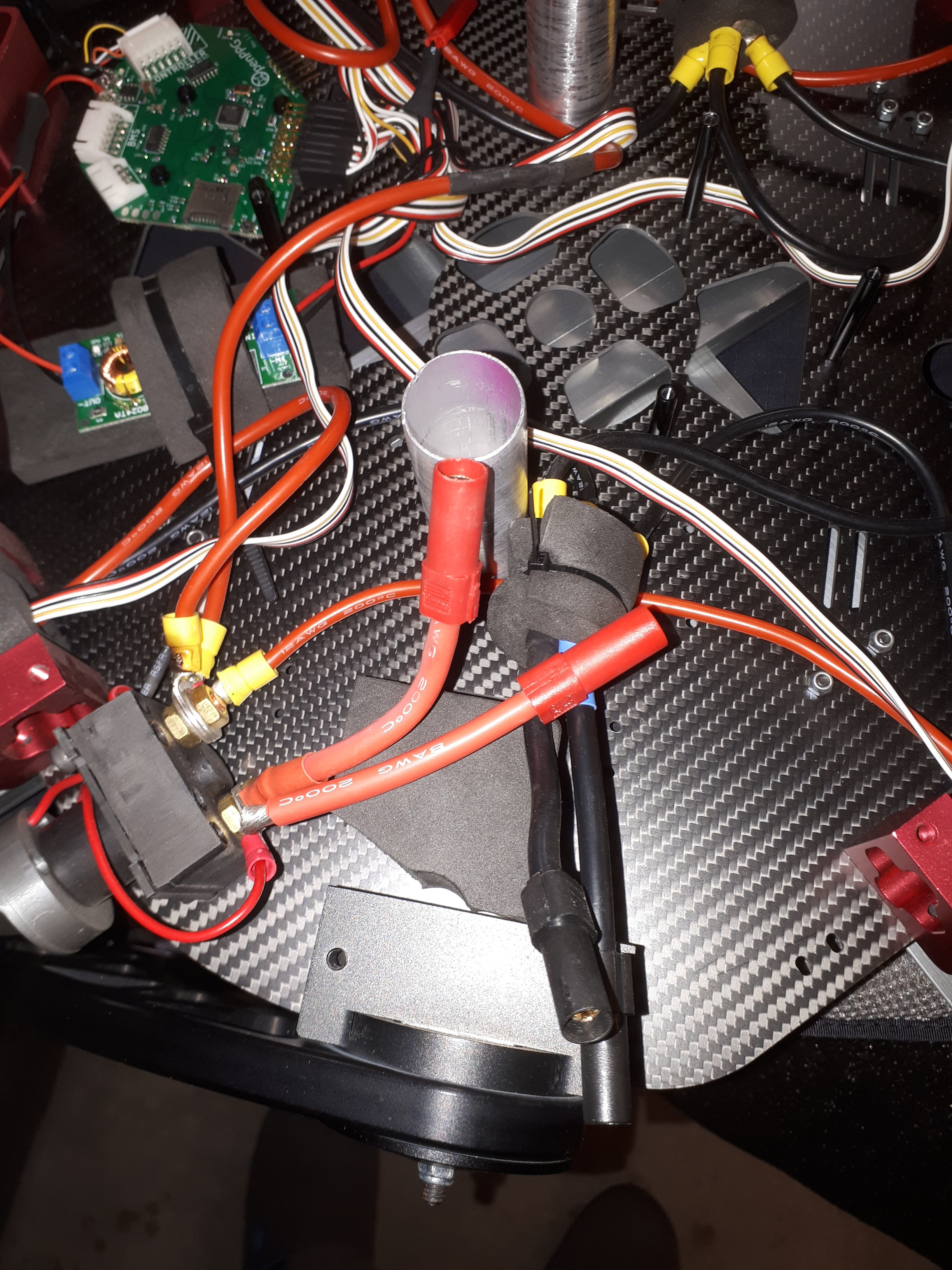

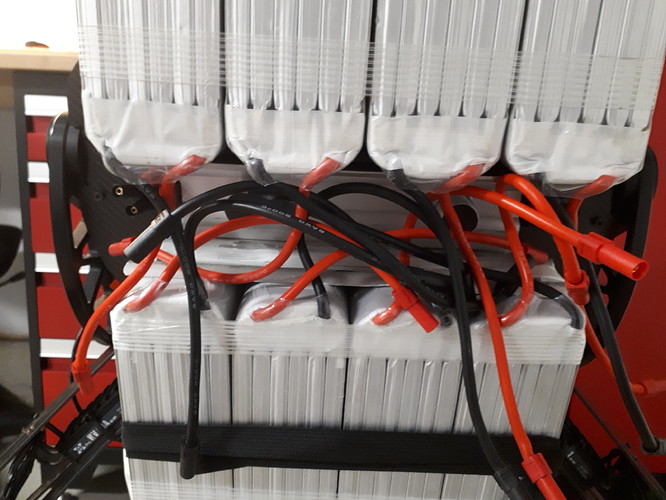

Part of the reason for the battery mount redo is to get another set of four Bonkas on there. To that end I needed a way to connect them. Rather than a pair of “Y” plugs I decided to add another pair of main power leads to each side.
They’re currently being discharged. Weather was good yesterday but I left the net and hoop at home so spent the afternoon kiting my new APCO Hybrid. Now it’s snowing and don’t expect to have flyable weather for at least a week.
Also just wanted to note here that I noticed a 3m bolt missing on the bottom of the leg assembly.
Replaced it then checked the torque on all the bolts. The bolts on the motor arms were all tight. The bolts on the leg assembly all moved about 1/8 turn to tighten. Of course I’ve pulled the back plate of so those will all be re-tightened. I’ve also noticed a trace of surface rust on all the hex head bolts.

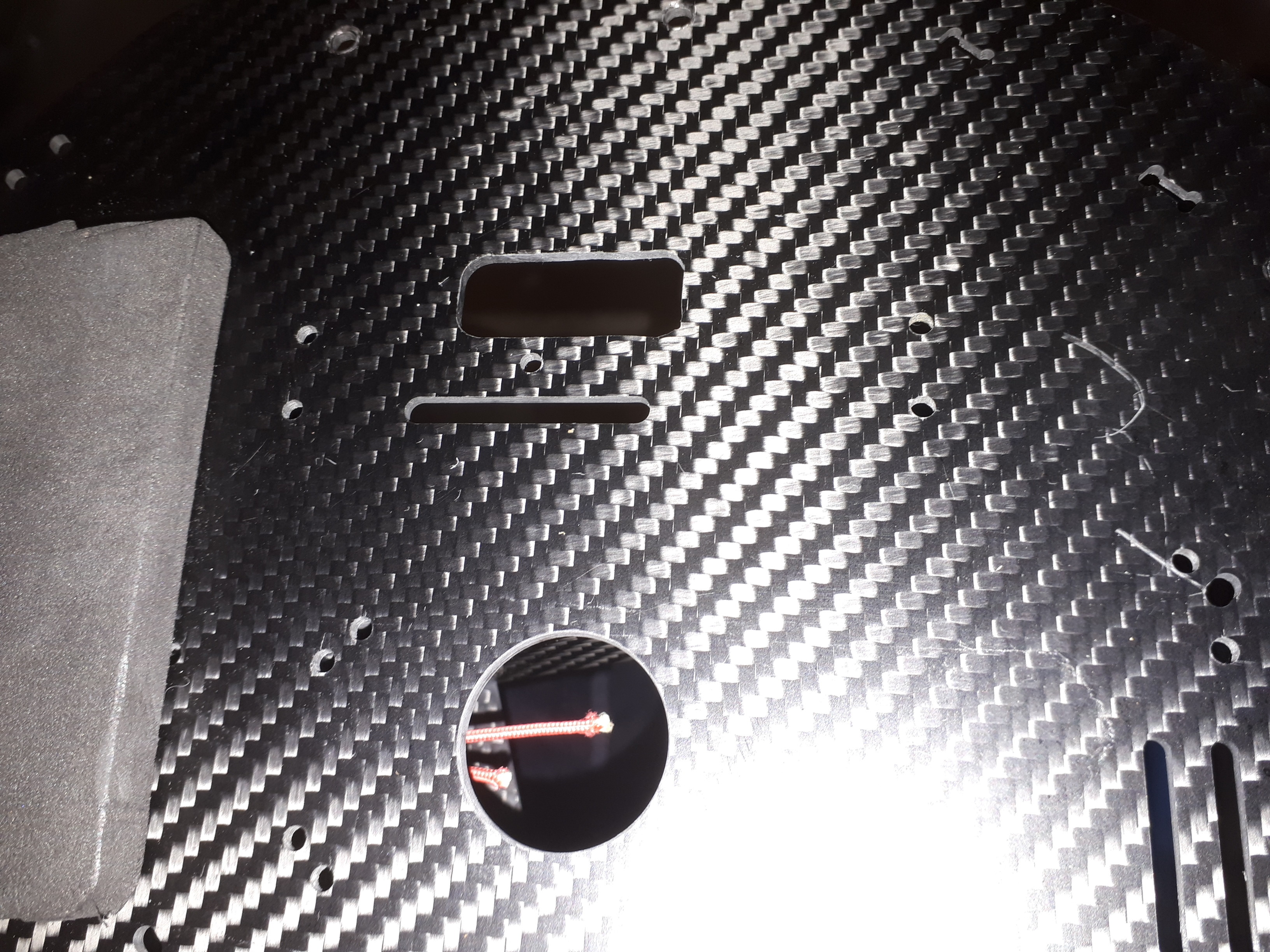

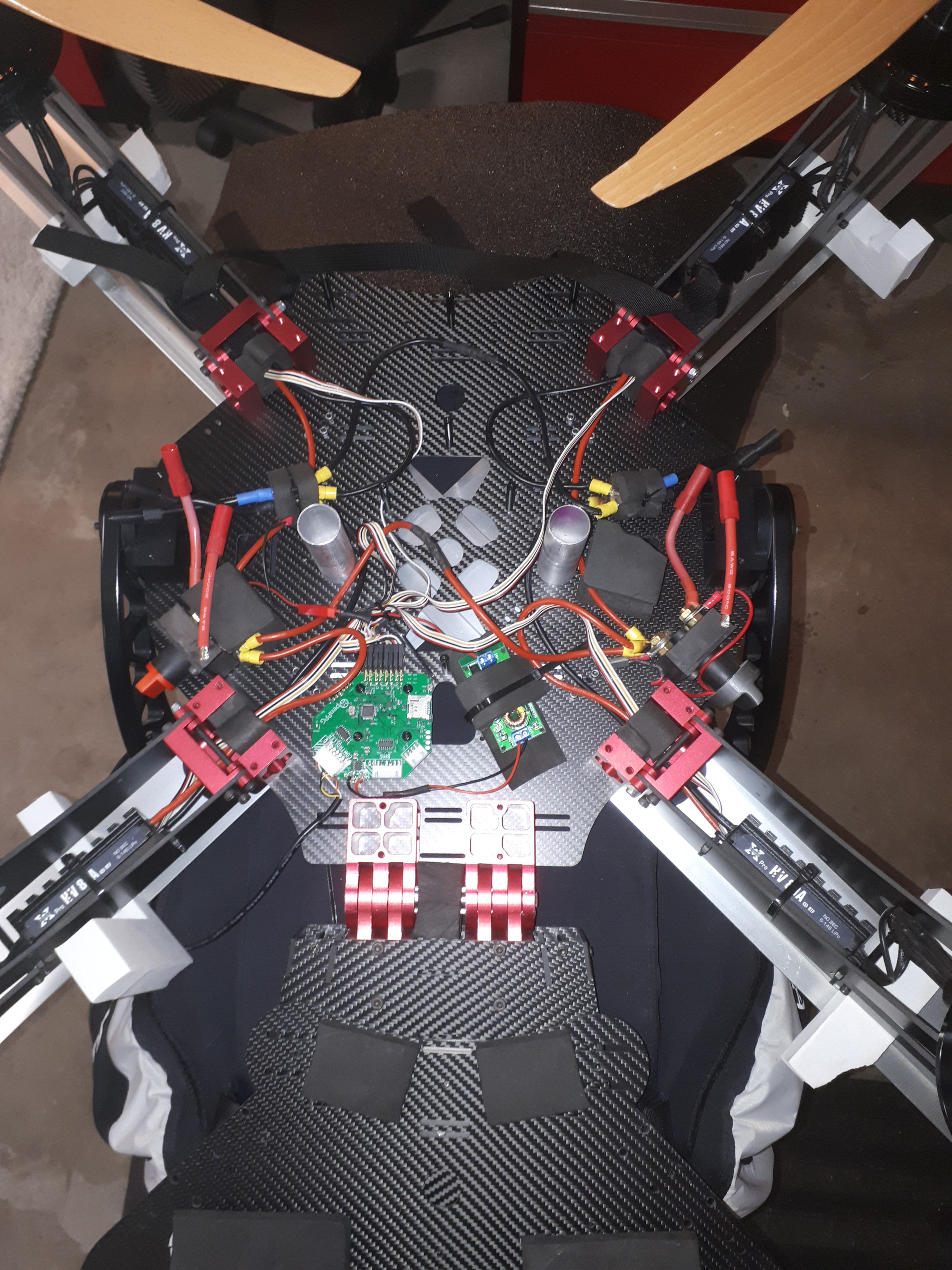

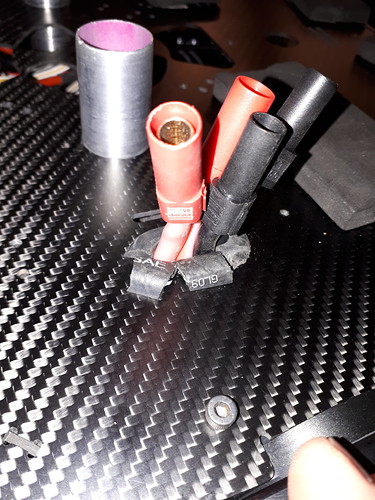

Back plate reinstalled and some grommet cut in to protect the wires where they come through. Through firewall plug mounts would be ideal but this works too. Since each pair of cables are connected at the other end it doesn’t matter which two are used when I fly with two pair of Bonkas.
I strapped in and stood up. It’s heavy! Once I got up I found I could walk around and maneuver it ok. Don’t think I’ll be doing any nill wind launches with eight batteries.
Yup. But it feels pretty solid. My only real concern is the total weight of the batteries - 20kgs worth - is entirely supported on those two 1" holes in each of the frame body plates and my aluminum tubes. I’m not planning on doing any acro with this but I do wonder how many G it would take.
Maybe doing some jump squats with it will improve the landing gear strength as well as test the battery mount strength.
Not sure if I’m doing the right calculation. Maybe an engineer on the site can help. I looked up some tables for strength of aluminum tube. It varies a lot depending on the alloy of course and I’m not sure what I have.
The weakest, 99% Al tube, has a yield strength of 5000psi ( sorry I’m working on Imperial units here).
My tubing is 15/16 outside diameter and 1/16 thickness which is a bit more than 0.37 square inches total.
5000X0.37 is 1850lbs per tube. Two tubes is 3700lbs total.
Seems like enough.
I’m thinking the carbon fibre will start crushing before the tubing is even deformed.
I’m in the process of wiring my new batch 6 X4. Would you consider 3D printing a spark arrestor knob assembly for me? I’d be happy to pay in advance for your time and costs.
Dorian Olson—seawindpilot
One concern with dual battery mounts is that straps are secure when only using one. First time I attempted to launch with both packs (all 8) mounted - no success, fickle breezes. So I decided to dismount the top pack to make the launch easier. Left the strap for the top set loos and of course it caught a prop. Of the four blades between the two top propellers the blade that was already chipped took the hit. It cracked.
Fortunately I’ve repaired it. I’ve also ordered 2 more props. Could only find the DFDL branded ones on aliexpress.

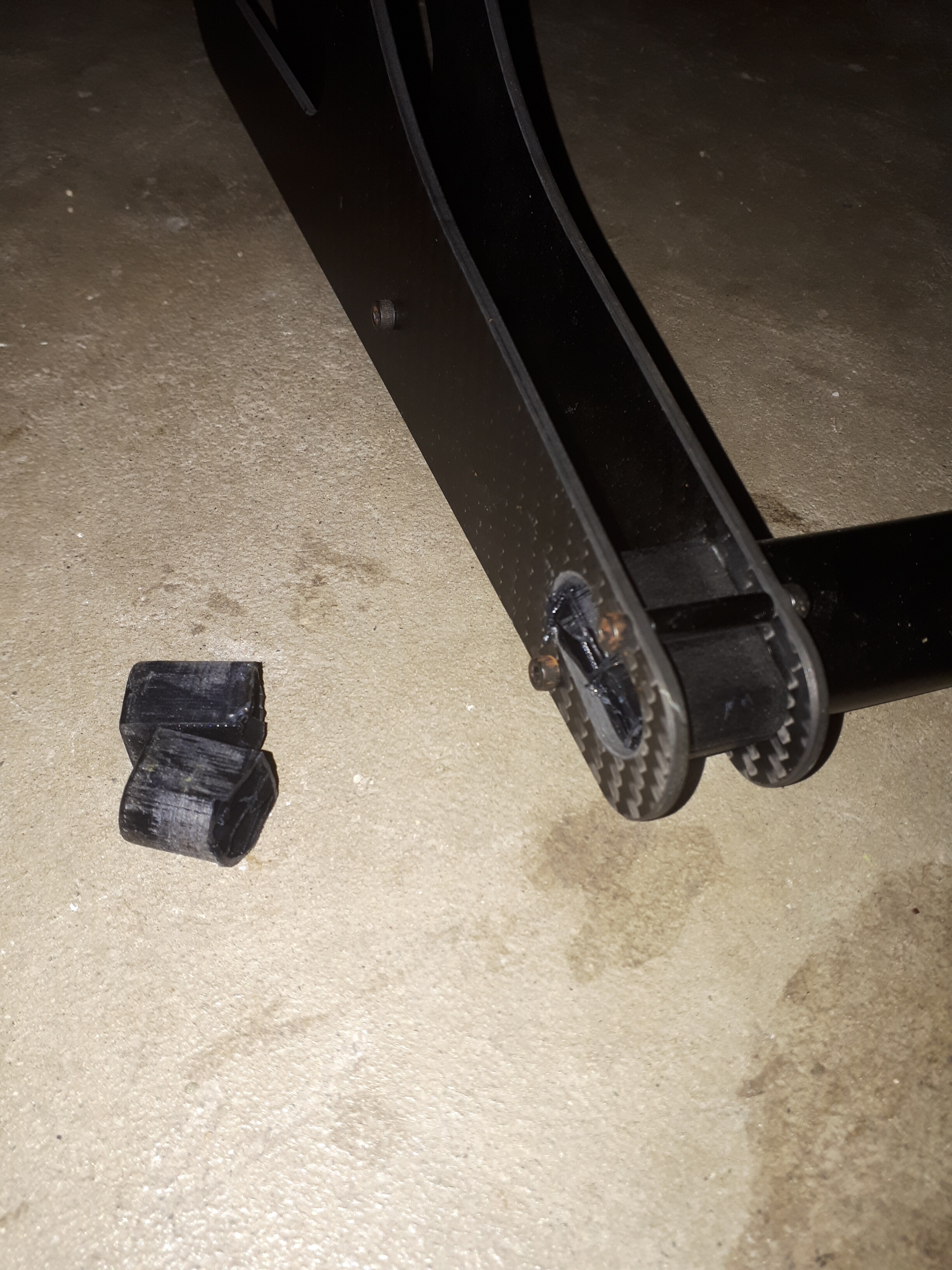

First landing damage. . Came in after a really cold 20 minutes of cruising. The chill must’ve affected my brain. I was thinking the approach seemed fast but didn’t therefore reach the obvious conclusion that the slight wind had switched around. Fast downwind and damp early evening grass caused a slip. Basically I butt landed and caught the left side of the cage on the turf. Something went crack. Turned out to be the left leg-tube connector sheared.

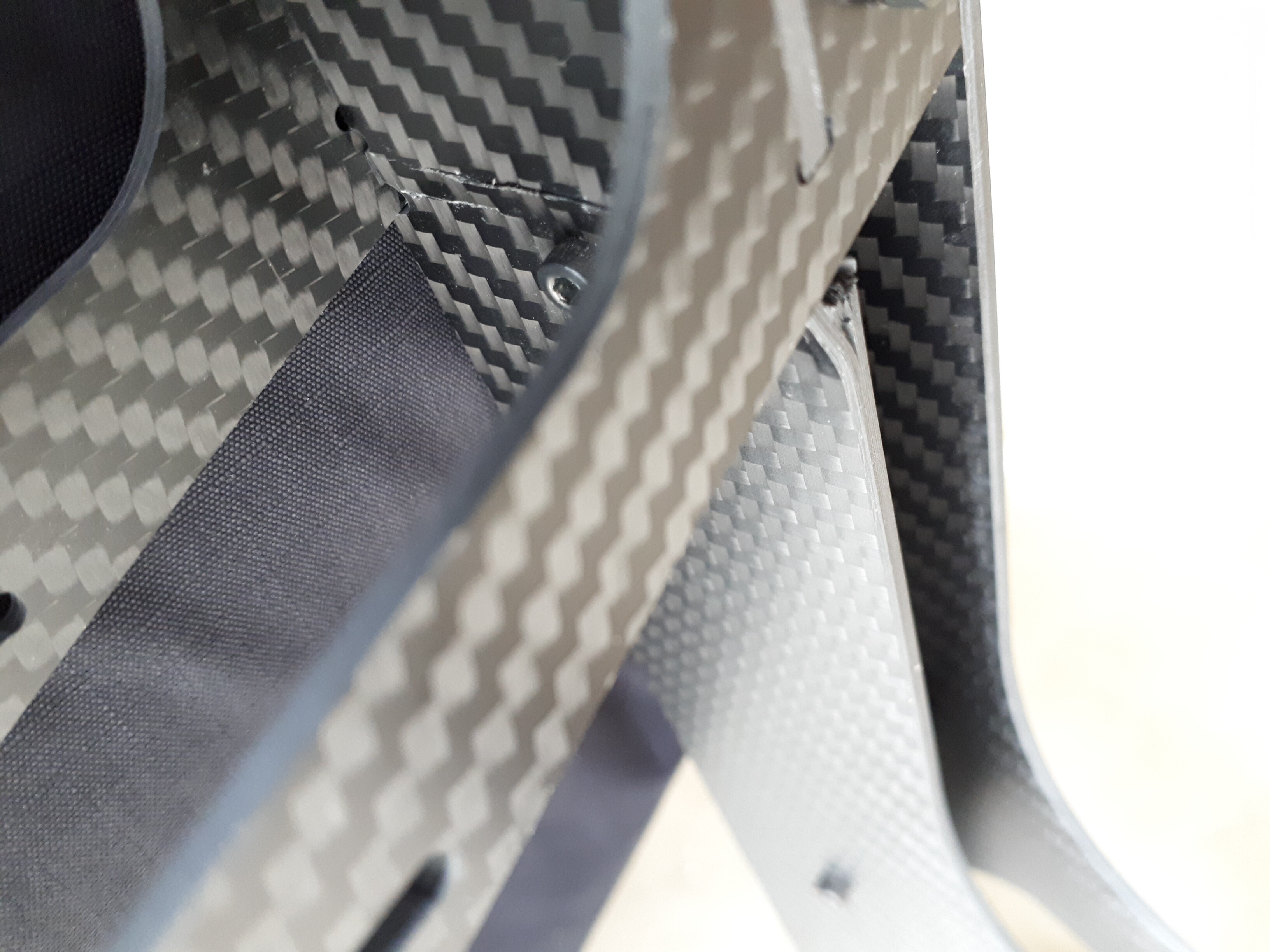

I also cracked both inner leg plates. They seem still solid enough and the outer plates are fine. The right one is the worst. These parts are not loaded in flight.
Chalking it up as a cheap lesson really. I’ve approached downwind before and had the presence of mind to switch directions. Just have to learn to stay focused on flying!

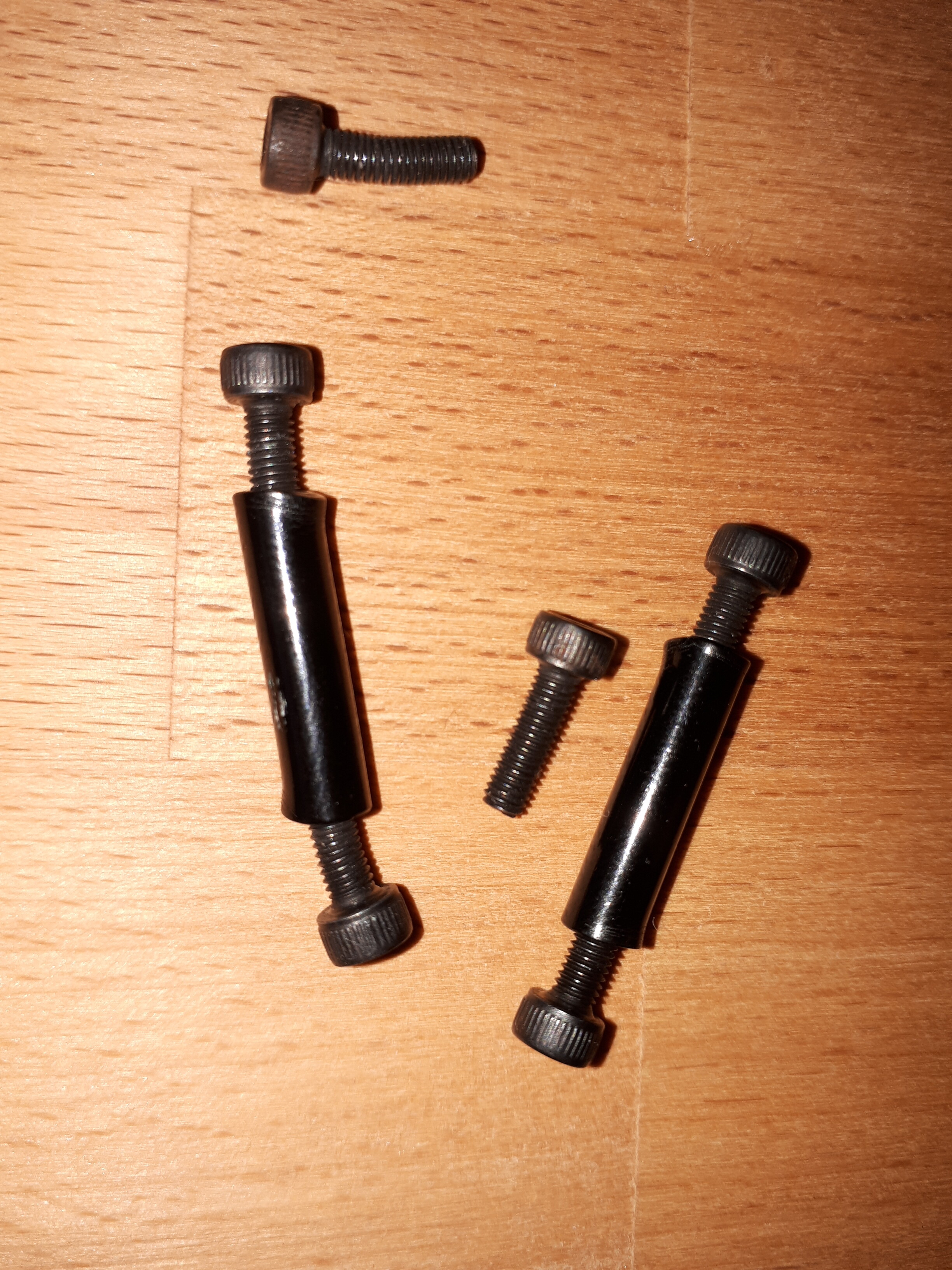

I’ve replaced the bent hardware from leftover parts I had.
Paul has sent me a replacement joiner for the price of shipping. While I’m waiting for that I’ve filled the broken joiner with epoxy (Gorilla brand) and stuck it back together. The breaks were very clean and there is plenty of mechanical surface inside for the epoxy to hold onto. That part weighs 30grams instead of 10 so I’ll probably swap in the new part when it arrives.
The cracked leg plates I’m going to just keep an eye on for now. The legs are still holding up the motor just fine.

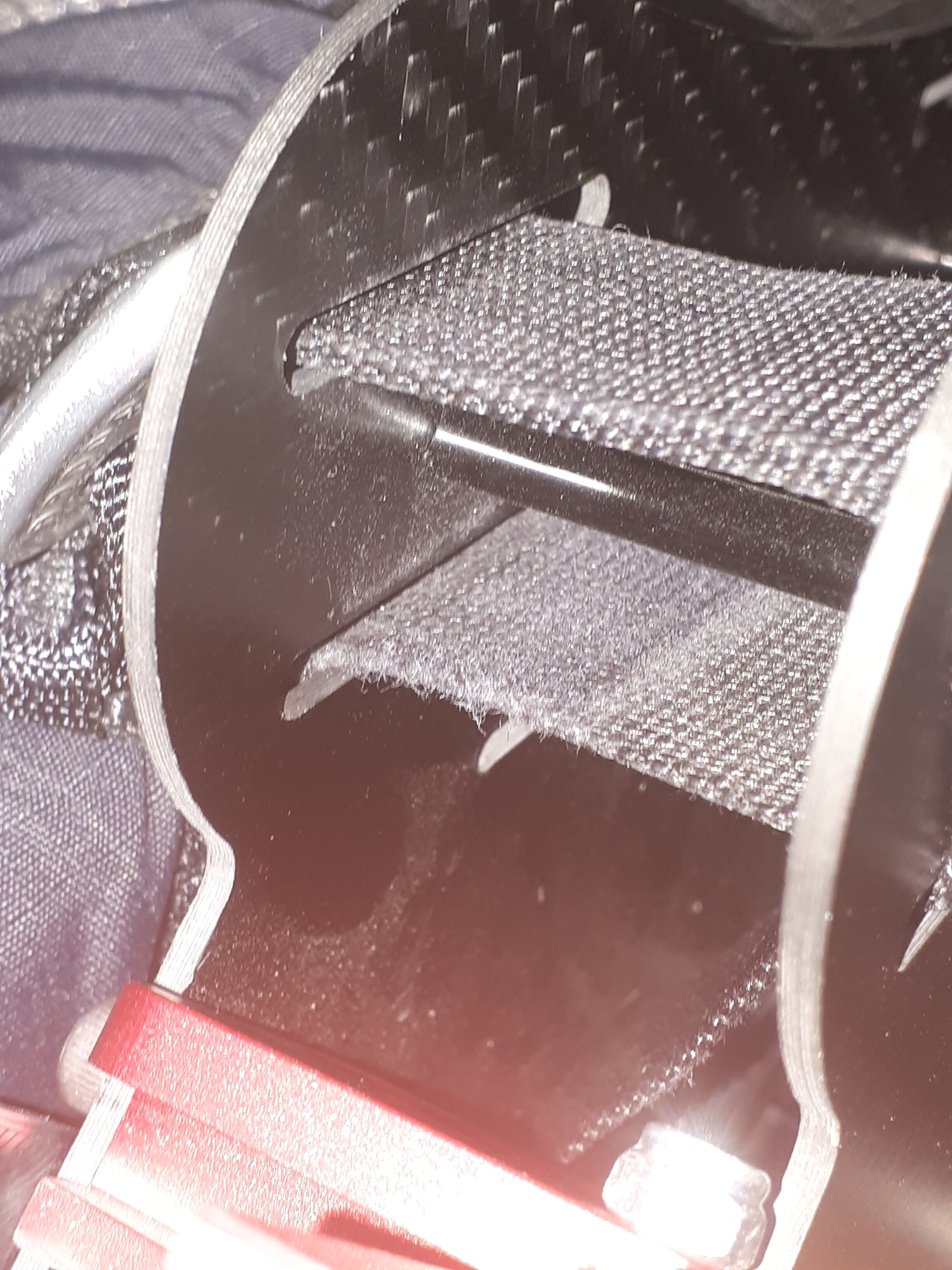

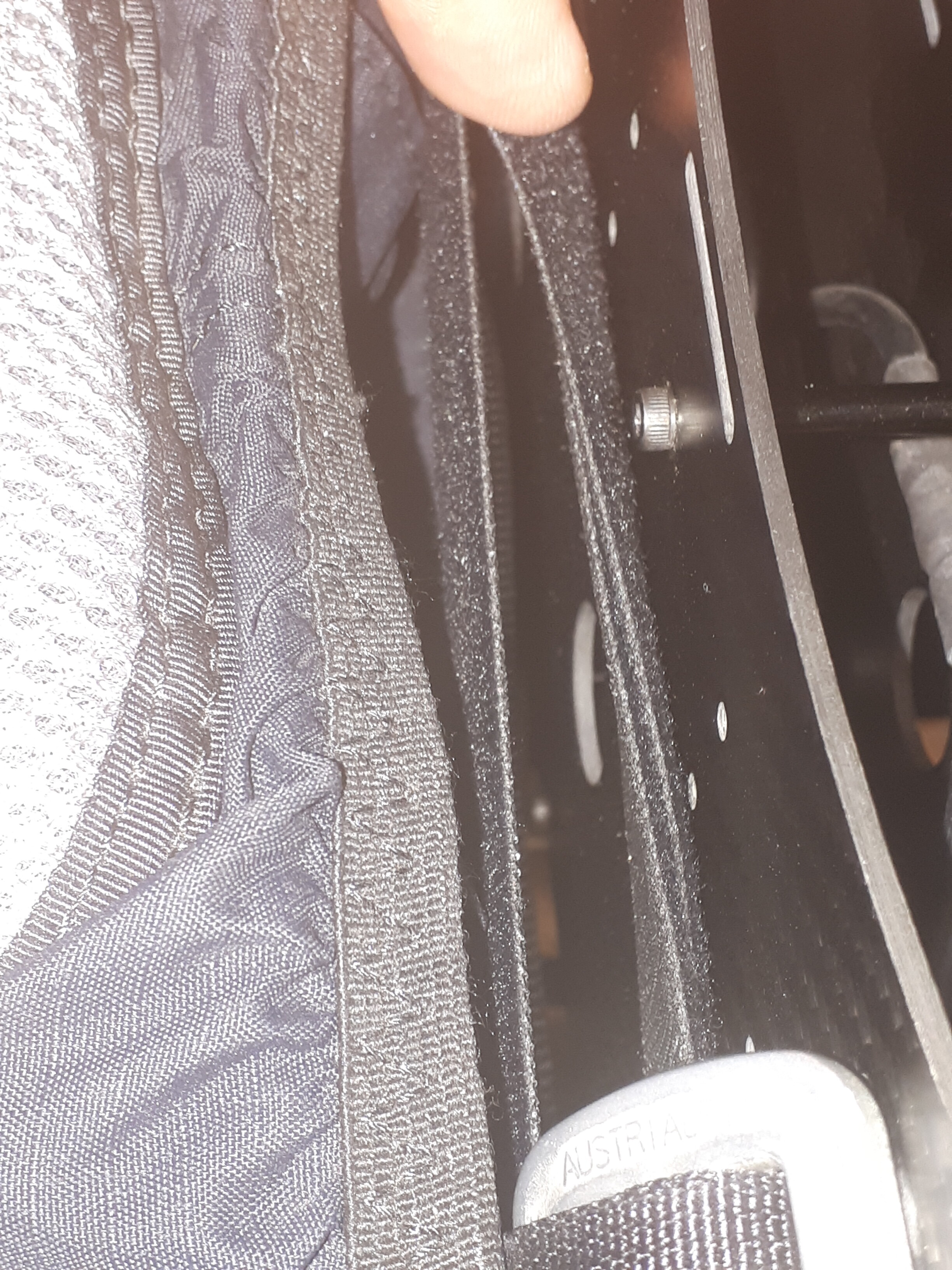

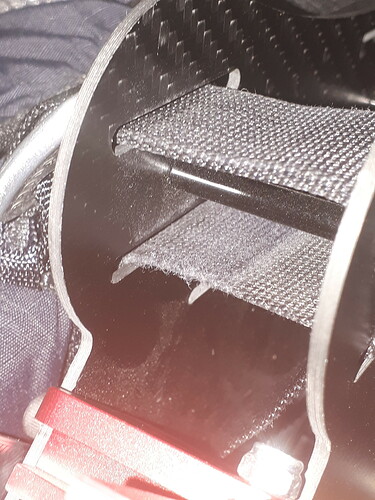

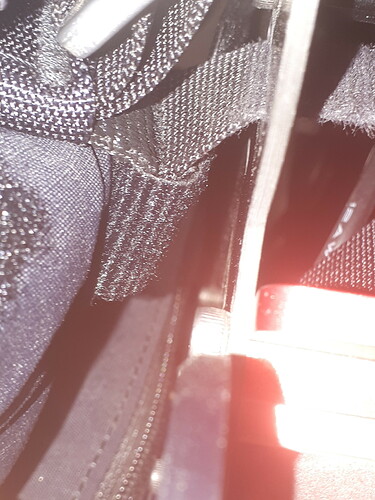

Noticed some wear on the upper harness straps just where they go through the lower slot in the frame. The right one only a little. The left one a bit more.
Partly this was caused by my battery mount pads pushing those straps outwards. I cleared that issue by trimming the pads out of the way. Then I also added a velcro strap to the back of the harness where those upper straps attach. It runs between the strap attachment points pulling them together.

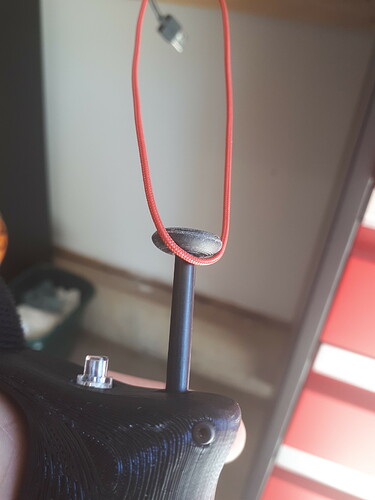

The plunger on the controller comes with a 3D printed thumb pad. I was concerned it could get caught by a line on launch so I’d simply unscrewed it. For 10 min flights this is not a problem. On 25 min flights my thumb was uncomfortable and dented.
Hiya just my 2 cents worth ,but would an 3d printed nverted which could fit ovet the top of the lever also help with comfort and minimum line snagging : potential -)

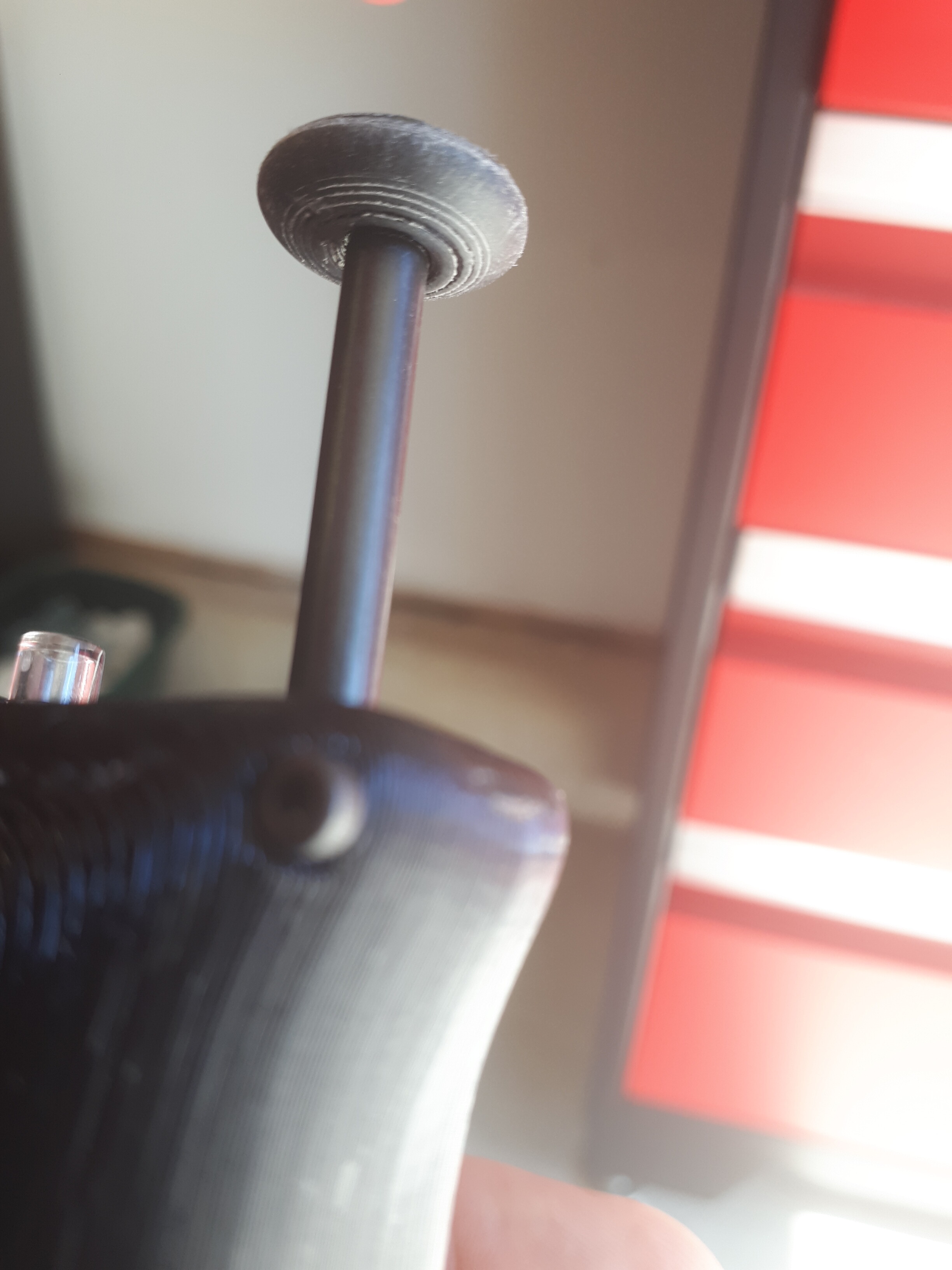

Yes. That’s exactly what that is. The 3D printed thumb pad I’m showing comes with the X4 kit already screwed to the plunger but flat side down.
Yes I would welcome a redesign of this part so it was even more tapered towards the handle. At full depression there is still about 5-8 mm gap between the bottom of the pad and the top of the handle. That space could be used to create a pad with a conical “V” shape. It could even be designed to fit over the plunger snug enough to not fall off, without being screwed to the plunger. That way if it did get a line wrapped right around it, it would just pull off and get lost. You would not loose the plunger which is part of an expensive electronic component soldered to the controller board inside the handle. I’m not a CAD guy. Anyone?
HI i dont have an openppg unit yet but may be able to help cad wise if you can post the dimeinsions of the Plunger then i can look at designing a clip on Part that may help … i use inventor at work and Fusion 360 for home use so between the 2 im sure we can come up with a retrofittable solution
